Street and Park

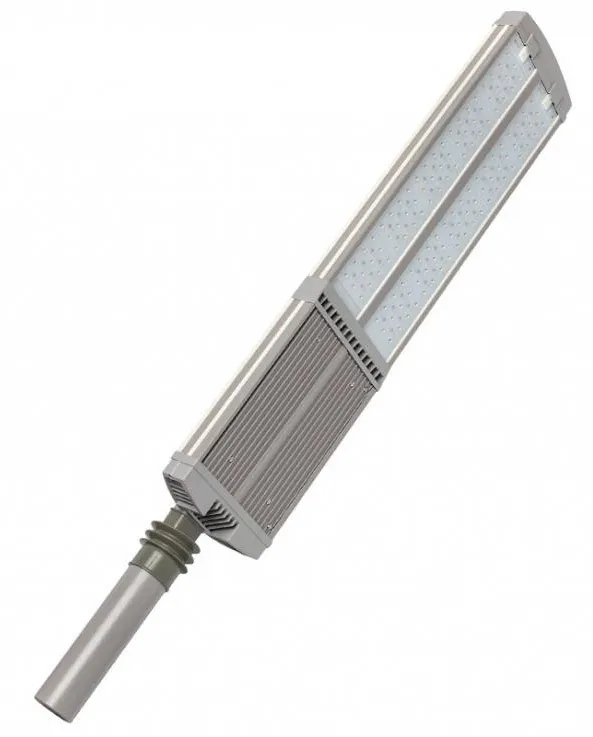

4S4.SM44-270
- Power 265 W
- IP rating IP67
LED Street Lighting Fixtures
Specifications
electrical
- Power
- 265 W
- Supply voltage
- 100÷277V AC/50-60 Hz
- Power factor
- 0.97
environment
- Operating temperature
- ~ -45°C ÷ +50°C
- Lifetime
- ~ 100 000 h
general
- Series
- 4S4.MAG 4
mechanical
- IP rating
- IP67
- IK rating
- IK10
- Housing
- Алуминий
- Dimensions
- 1256x205x101 mm
- Weight
- 10 kg
- Mounting hole
- Ø 48-76mm (max)
optical
- Luminous flux
- 34500 lm
- Colour temperature
- 3000К-6500K
- Colour rendering index
- Ra ≥80
- Optics
- несиметрична оптика 140°/60°
- Light source
- 120 LEDs x 2W Osram / Cree
Description
LED street lighting fixtures are suitable and significantly more efficient alternatives to traditional sodium and mercury vapor lamps. The products we offer comply with the requirements for all street classes. A special powder coating on the aluminum housing ensures resistance to environmental conditions. The innovative heat sink design provides efficient heat dissipation. High-performance LEDs from leading global manufacturers Osram and Cree are used.
Applications
- Roads of categories A, B, and C (highways, single- and dual-lane roads)
- Industrial zones and warehouses
- Tunnels
- Railway stations and tracks
Advantages
- 1.5 to 3 times lower energy consumption
- Various beam angles due to modular lens design
- No flicker that harms the eyes
- Integrated surge protection up to 10kV (optional)
- LED modules are water- and dust-resistant – no light loss
- LED module lifespan exceeds 100,000 hours
Technical Specifications:
Applications
- Roads of the A, B & C categories (controlled-access highways/motorways, single and dual carriageways)
- Industrial estates and warehouses
- Tunnels
- Railway stations and tracks
