Street and Park

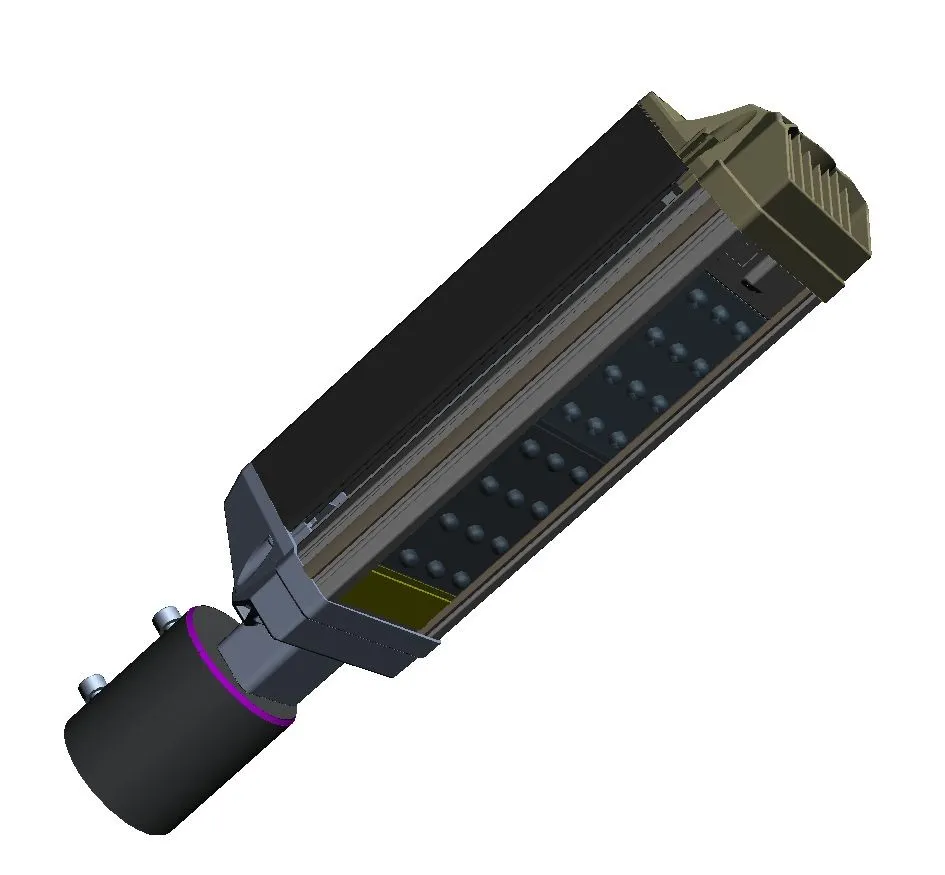

4S4.SM11-060
- Power 50 W
- Efficacy ≥160 lm/W
- IP rating IP67
LED luminaires for street lighting are ideal and far more efficient alternatives to sodium and mercury vapor fixtures. Our products meet the requirements for all road classes and feature:
Specifications
electrical
- Power
- 50 W
- Supply voltage
- 100÷277V AC/50-60 Hz
environment
- Operating temperature
- ~ -45°C ÷ +50°C
- Lifetime
- ~ 100 000 h
general
- Series
- 4S4.MAG 3
- Certificates
- CE, ENEC
mechanical
- IP rating
- IP67
- IK rating
- IK10
- Housing
- Алуминий
- Dimensions
- 645x105x104 mm
- Weight
- 3.8 kg
- Mounting hole
- Ø 48-76mm (max)
optical
- Efficacy
- ≥160 lm/W
- Colour temperature
- 4000К-5000K
- Colour rendering index
- Ra ≥75
- Optics
- несиметрична оптика 140°/60°
- Light source
- 24 LEDs x 2W Osram / Cree
Description
- A weather-resistant, powder‑coated aluminum housing, designed to endure harsh outdoor conditionsAn innovative heatsink design that ensures efficient heat dissipation and extends lifespan
- High-efficiency LEDs sourced from leading manufacturers Osram and Cree, delivering superior light output and reliability
Applications
- Roads of categories A, B, and C (motorways, single- or dual‑carriageway roads)
- Industrial zones and warehouses
- Tunnels
- Railway stations and tracks
Advantages
- 1.5–3× lower energy consumption compared to sodium/mercury vapor lamps
- Customizable beam angles thanks to modular lens design
- No harmful flicker, ensuring eye-safe lighting
- Optional integrated surge protection (up to 10 kV)
- Water- and dust‑proof LED modules, preserving luminous output
- LED lifespan exceeds 100,000 hours, reducing maintenance
Technical Specifications
Applications
- Roads of the A, B & C categories (controlled-access highways/motorways, single and dual carriageways)
- Industrial estates and warehouses
- Tunnels
- Railway stations and tracks
