Street and Park

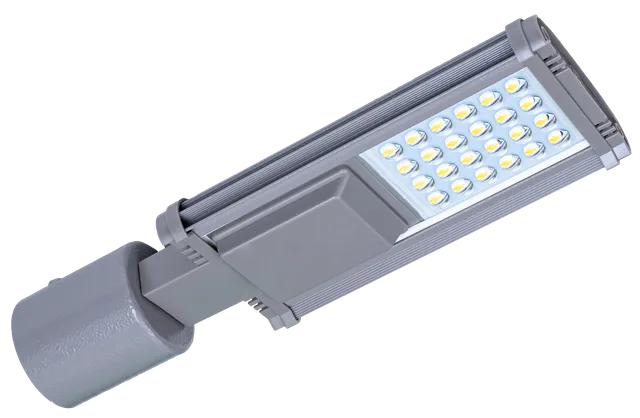

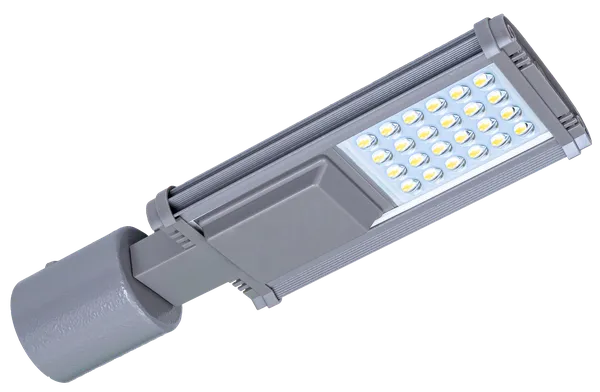

4S4.SM10-050
- Power 35-50W
- Efficacy ≥160 lm/W
- IP rating IP67
LED luminaires for street lighting are ideal and far more efficient alternatives to sodium and mercury vapor fixtures. Our products meet the standards for all road classes. The powder-coated aluminum housing ensures durability against harsh weather. Innovative heatsink design enables effective heat dissipation. High-efficiency LEDs from leading manufacturers Osram and Cree are used.
Specifications
electrical
- Power
- 35-50W
- Supply voltage
- 230 AC / 50 Hz
environment
- Operating temperature
- ~ -45°C ÷ +50°C
- Lifetime
- ~ 80 000 h
general
- Series
- 4S4.MAG 10
- Certificates
- CE
mechanical
- IP rating
- IP67
- Housing
- Алуминий
- Dimensions
- 229x126x34 mm
- Weight
- 0.65 kg
- Mounting hole
- Ø 48-76mm (max)
optical
- Efficacy
- ≥160 lm/W
- Colour temperature
- 4000К-5500K
- Colour rendering index
- Ra ≥80
- Optics
- несиметрична отика 150° / 40°
- Light source
- 24 LEDs
Description
Applications
- Roads in categories A, B, and C (motorways, single- or dual-lane roads)
- Industrial zones and warehouses
- Tunnels
- Railway stations and tracks
Advantages
- 1.5–3× lower energy consumption
- Customizable beam angles thanks to modular lens design
- No harmful flicker, ensuring eye safety
- Integrated surge protection up to 4 kV
- Water- and dust-resistant LED modules—no loss of light output
- LED module lifespan exceeds 80,000 hours
Technical Specifications:
Applications
- Roads of the A, B & C categories (controlled-access highways/motorways, single and dual carriageways)
- Industrial estates and warehouses
- Tunnels
- Railway stations and tracks
