Industrial

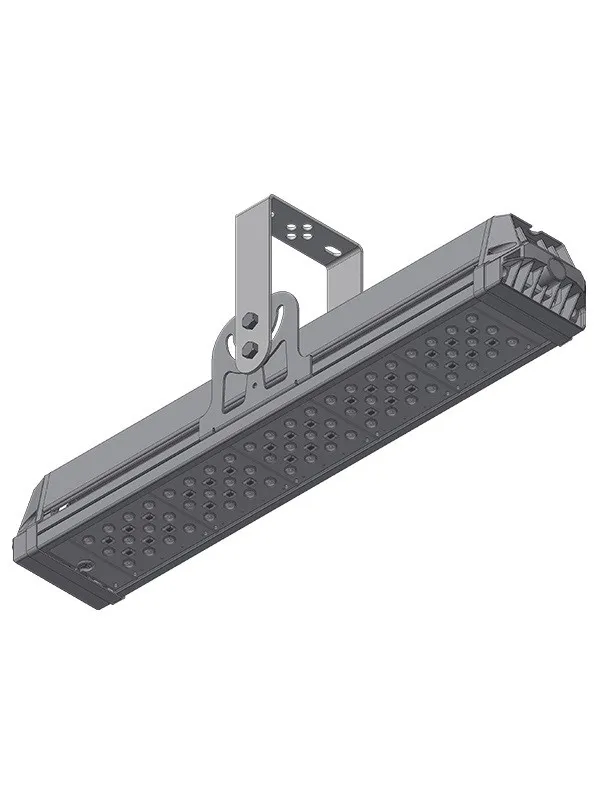

4S4.SI31-135
- Power 132 W
- IP rating IP67
- Luminous flux 21780 lm
Industrial LED luminaires are an efficient substitute of luminaires with mercury and sodium lamps, as well as floodlights with metal-halide lamps. Patented extruded aluminum housing. Innovative heat sink design for efficient heat dissipation. High-efficacy LEDs from the leading world manufacturers Osram and Cree.
Specifications
electrical
- Power
- 132 W
- Supply voltage
- 100÷277V AC/50-60 Hz
- Power factor
- 0.97
environment
- Operating temperature
- ~ -45°C ÷ +50°C
- Lifetime
- ~ 75 000 h
general
- Series
- 4S4.INDUSTRY 3
mechanical
- IP rating
- IP67
- IK rating
- IK10
- Housing
- Алуминий
- Dimensions
- 614x126x137 mm
- Weight
- 4.9 kg
optical
- Luminous flux
- 21780 lm
- Colour temperature
- 3500К-6500K
- Colour rendering index
- Ra ≥70
- Light source
- 60 LEDs x 2W Osram / Cree
Description
Technical specifications:
- Certificates
Applications
- Industrial estates and production shops
- Railway platforms
- Transport tunnelс
- Loading/ unloading ramps
- Yard spaces and parks
- Parking lots and petrol stations
