Fiscal Printers

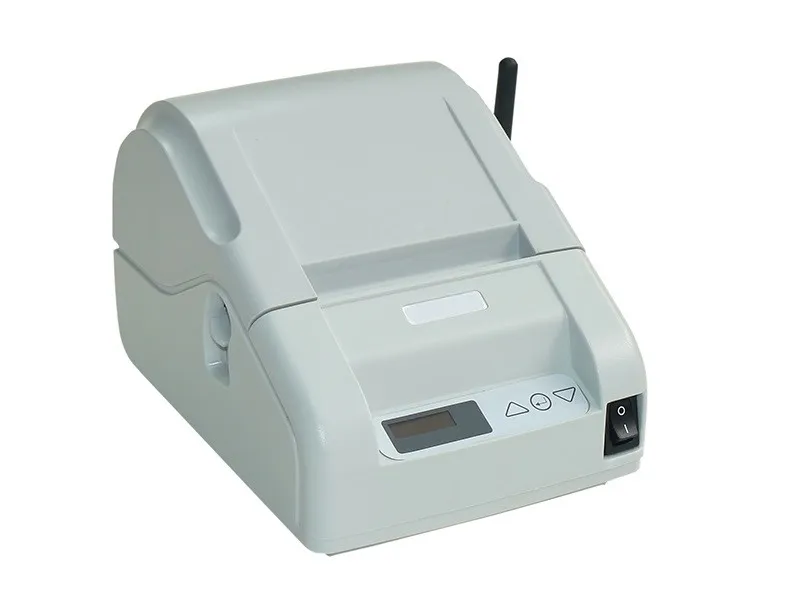

FP 300 SM KL-Q
NAP type approval № 795
- Fiscal memory 1825 дневни финансови отчета
It complies with the requirements of REGULATION No. H-18 of December 13, 2006 (amended and supplemented by State Gazette No. 80 of September 28, 2018, incl.) for registering and reporting sales in retail outlets through fiscal devices, the requirements for software for their management and requirements for persons who make sales through an electronic store.
Specifications
connectivity
- Interfaces
- USB, два RS 232C – за комуникация с компютър, включване на външен дисплей и сейф за банкноти и монети
electrical
- Supply voltage
- външен адаптер AC 100-240V, 50-60Hz; DC 24V, 2.5A
environment
- Operating temperature
- от 0° до +45° С
fiscal
- Fiscal memory
- 1825 дневни финансови отчета
- Programmable items (PLU)
- 820
- Payment types
- В БРОЙ и 4 плащания с програмируеми наименования
- Electronic journal (SD card)
- 4GB мин.
general
- Application
- подходящ за използване във всички обекти за търговия и услуги
hardware
- Display
- 22.4 х 5.6 mm; 128 x 32 пиксела
mechanical
- Dimensions
- Размери (mm) – 180 x 130 х 120
- Weight
- 0.8 kg
printing
- Graphic logo
- 384 х 144 пиксела
- Receipt header
- 8 реда
- Receipt footer
- 2 реда
Downloads

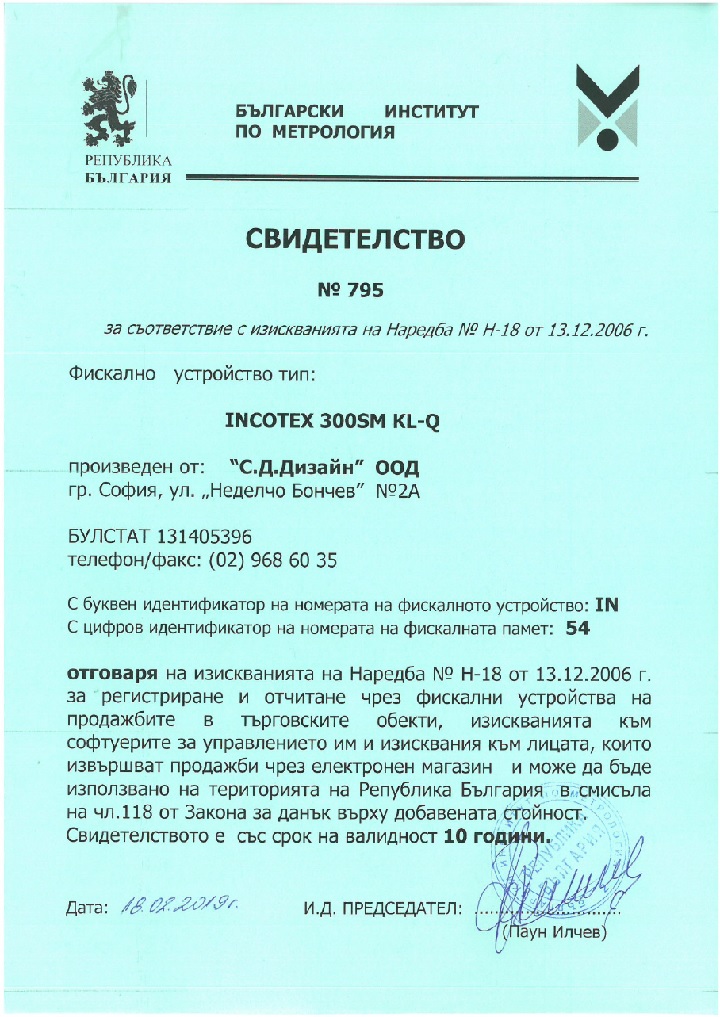

- Type approval certificate Фискален принтер FP 300SM KL-Q — Свидетелство за одобрен тип JPG · 228.8 KB
- Approval supplement Фискален принтер FP 300SM KL-Q — Допълнение към свидетелство PDF · 485.1 KB
- User manual Фискален принтер FP 300SM KL-Q — Ръководство за експлоатация PDF · 2.1 MB
Description
Technical Characteristics:
- OLED graphic display – 22.4 x 5.6mm; 128 x 32 pixels
- Fast and noiseless thermal printer Seiko:
- easy paper loading
- auto-cutter
- thermal paper:
- single layer, 80 mm wide
- paper roll diameter – max. 80 mm
- GSM/GPRS modem
- 3V Lithium battery, supporting the real time clock & RAM
- Power Supply Adapter
- input: AC 110~240V, 50-60Hz
- output: DC 24V / 3A
Functional Characteristics:
- Programmable PLUs
- 8 departments
- 10 operators
- 5 VAT groups
- 10 units of measure with programmable names
- 5 payment types CASH & 4 types with programmable names
- Discounts and mark- ups- percentage and value
- Registering received on account and paid out amounts
- Reports:
- PLU report
- operators report
- daily X report
- daily Z report
- daily Y report
- weekly P report
- Fiscal memory reports:
- by record numbers – detailed and short reports
- by dates – detailed and short reports
- Communication protocol between the FP and PC – supported
- Built-in diagnostic test
