Electronic Cash Registers

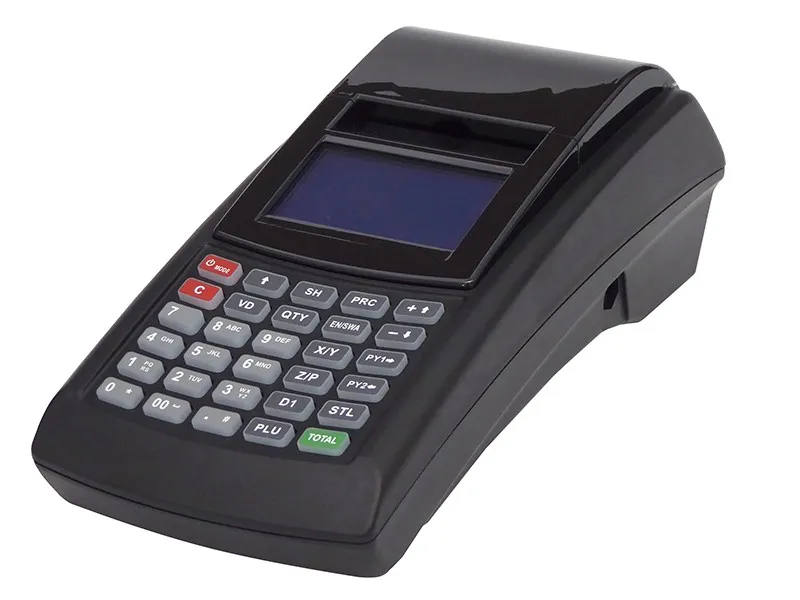

TPD 777
NAP type approval № 794
- Fiscal memory 1825 дневни отчета
- Programmable items (PLU) 4510
Specifications
electrical
- Supply voltage
- външен адаптер AC 100-240V, 50-60Hz; DC 9V, 2.66A
- Battery
- вградена литиево-йонна батерия: 7.4V, 1900 mАh
environment
- Operating temperature
- от -15° до +45° С
fiscal
- Fiscal memory
- 1825 дневни отчета
- Programmable items (PLU)
- 4510
- Payment types
- В БРОЙ и 4 плащания с програмируеми наименования (едното от тях – с програмируем валутен курс)
- Electronic journal (SD card)
- 4GB мин.
general
- Application
- подходящ за използване във всички обекти за търговия и услуги
hardware
- Keyboard
- 12 цифрови клавишa; 18 функционални клавишa
mechanical
- Dimensions
- Размери (mm) – 111 x 240 х 83
- Weight
- 0.65 kg
printing
- Graphic logo
- 384 х 144 пиксела
- Receipt header
- 8 реда
- Receipt footer
- 2 реда
Downloads

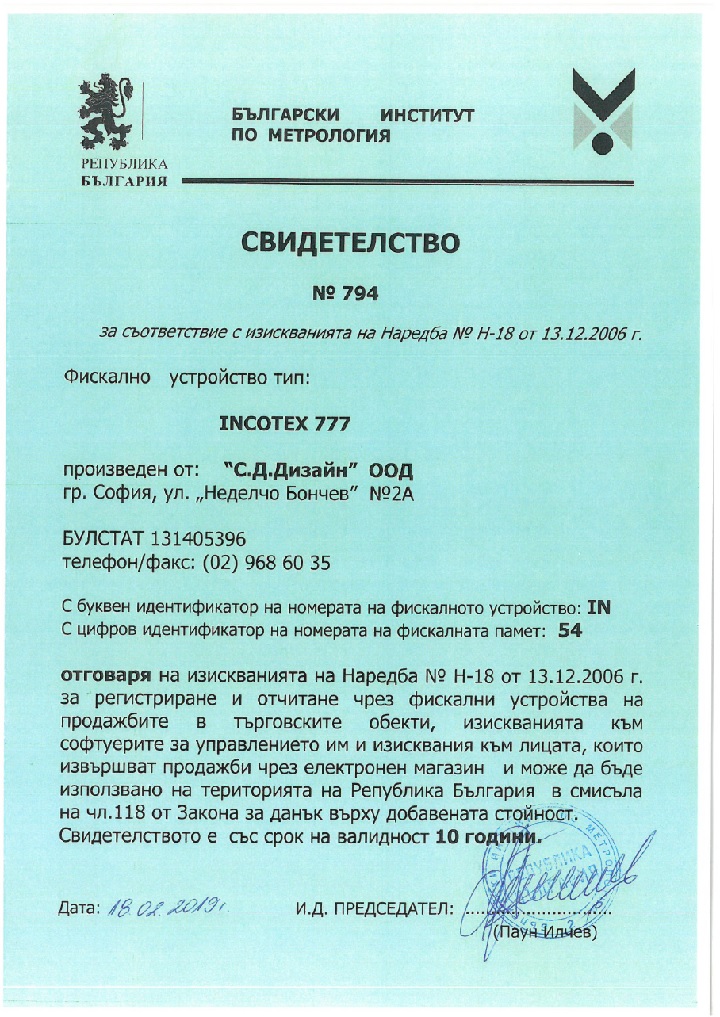

- Type approval certificate Касов апарат TPD 777 — Свидетелство за одобрен тип JPG · 283.2 KB
- Approval supplement Касов апарат TPD 777 — Допълнение към свидетелство PDF · 482.9 KB
- Wiring diagram Касов апарат TPD 777 — Схема на свързване PDF · 340.2 KB
- User manual Касов апарат TPD 777 — Ръководство за експлоатация PDF · 4.2 MB
Description
Technical Characteristics:
- Two displays – graphic LCD: Operator’s – 128 x 64; Customer’s – 128 x 32
- Keyboard
- 12 digits keys
- 18 functional keys
- GPRS modem
- Ethernet (optional)
- 2 SD cards – second is optional
- Li-Ion battery pack – built-in rechargeable
- 7.4V, 2000 mАh
- 60 hours in stand – by mode
- printing more than 40 000 lines when fully charged
- External adapter 9V, 2.66A, input 220V (-15%, +10%), 50Hz
- Lithium battery supporting the real time clock
- Different colors
- Dimensions, (mm)
- w/o antenna – 240 x 105 x 82
- with antenna – 240 x 115 x 92
- Weight, (kg) ~ 0,700
Functional Characteristics:
- PLU database
- PLU barcodes and available quantities support
- Weight barcodes support – programmable identifier, zone type and length
- 24 departments
- 10 operators in Registration mode and 4 passwords for the other four modes (X reports, Z reports, Programming, Service mode)
- 8 VAT groups
- 20 commodity groups with programmable names
- 10 units of measure with programmable names
- Graphic logo printing – 384 x 144 pixels
- Discounts and mark-ups – percentage and value
- Registration of received on account and paid out amounts
- Registration of refunds
- Fiscal printer mode
- Electronic Journal
- Reports:
- PLU/PLU groups report;
- available quantities;
- commodity groups report;
- departments report;
- VAT groups report;
- operators report;
- sales report;
- daily report.
- Fiscal memory reports:
- by record numbers – detailed and short reports
- by dates – detailed and short reports
- Communication protocol between the ECR and PC – supported
- Built-in tests
