Electronic Cash Registers

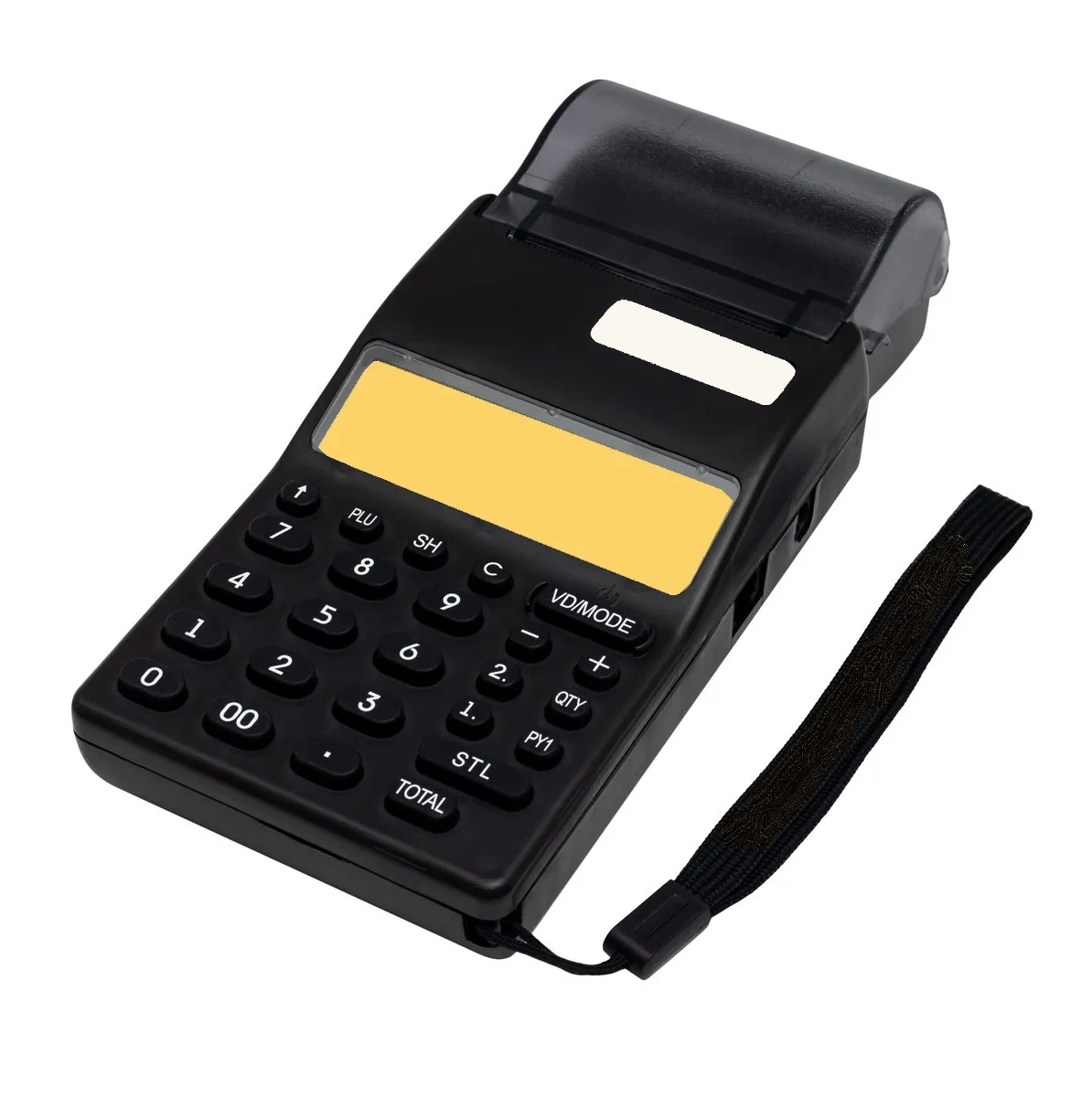

TPD 181 KL-Q
NAP type approval № 779
- Fiscal memory 1825 дневни отчета
- Programmable items (PLU) 4510
Specifications
connectivity
- Interfaces
- USB и два RS 232 – за комуникация с компютър, включване на бар-код скенер и електронна везна
electrical
- Supply voltage
- външен адаптер AC 100-240V, 50-60Hz; DC 9V, 1.3A
- Battery
- вградена литиево-йонна батерия: 7.4V, 1800 mАh
environment
- Operating temperature
- от -15° до +45° С
fiscal
- Fiscal memory
- 1825 дневни отчета
- Programmable items (PLU)
- 4510
- Payment types
- В БРОЙ и четири плащания с програмируеми наименования (едното от тях – с програмируем валутен курс)
- Electronic journal (SD card)
- 4GB мин
general
- Application
- подходящ за използване във всички обекти за търговия и услуги
hardware
- Keyboard
- 12 цифрови клавишa; 13 функционални клавишa
mechanical
- Dimensions
- Размери (mm) – 196 x 88 x 58 (196 x 111 х 58 с антената)
- Weight
- 0.4 kg
printing
- Graphic logo
- 384 х 144 пиксела
- Receipt header
- 8 реда
- Receipt footer
- 2 реда
Downloads

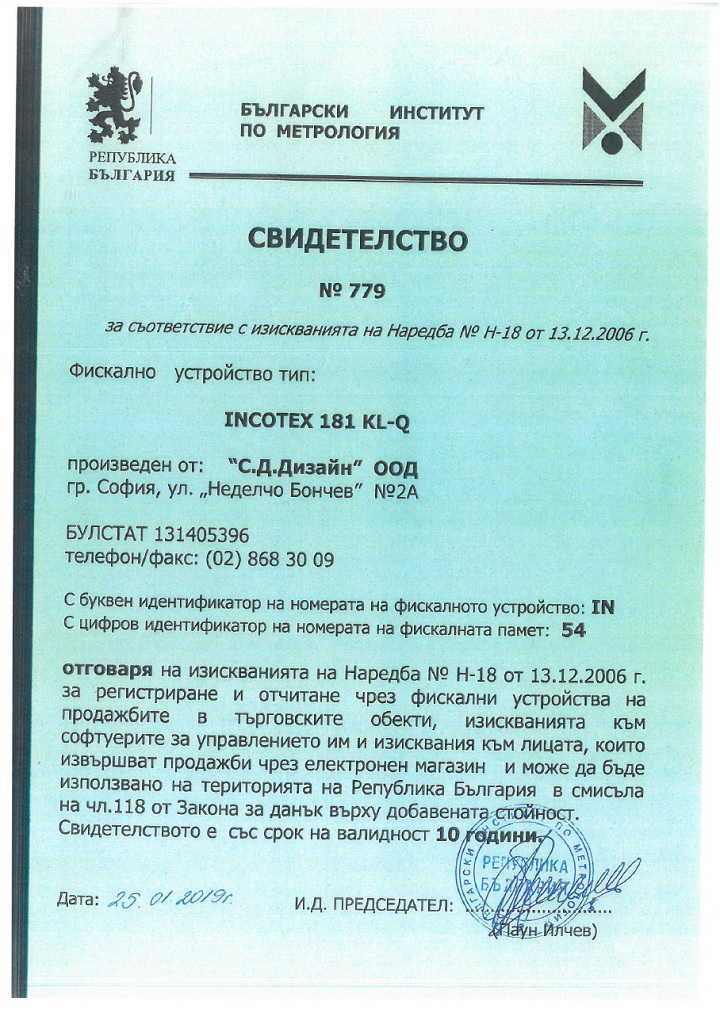

- Type approval certificate Касов апарат TPD 181 KL-Q — Свидетелство за одобрен тип JPG · 301.2 KB
- Approval supplement Касов апарат TPD 181 KL-Q — Допълнение към свидетелство PDF · 490.0 KB
- Wiring diagram Касов апарат TPD 181 KL-Q — Схема на свързване PDF · 273.5 KB
- User manual Касов апарат TPD 181 KL-Q — Ръководство за експлоатация PDF · 4.3 MB
Description
Technical Characteristics:
- Operator’s display – Graphic LCD with backlight (13-digit 7-segment)
- Client’s display (option)
- Keyboard:
- 12 digits keys
- 13 functional keys
- Thermal printer Seiko:
- easy paper loading
- number of character – 32 characters per line
- GSM/GPRS modem
- Fiscal Memory
- Interfaces:
- RS 232 interface for SDC connection
- USB interface for PC connection
- Bluetooth (optional)
- Ethernet (optional)
- 3V Lithium battery, supporting the real time clock & RAM
- Li-Ion Battery 7.4V / 1800mAh
- built –in rechargeable
- Stand – by mode: 30 hours
- printing mode: up to 40 000 lines, fully charged
- Power Supply Adapter
- input: 220V, 50Hz
- output: 9V / 1.3A
Functional Characteristics:
- PLU database
- Stock quantities
- Up to 8 departments
- Up to 10 operators in Registration mode and 4 passwords for the other four modes (X reports, Z reports, Programming, Service mode)
- Up to 5 VAT groups
- 8 commodity groups with programmable names
- Up to 10 units of measure with programmable names
- Discounts and mark-ups – percentage and value
- Registration of received on account and paid out amounts
- Registration of refunds
- Electronic Journal capacity – up to 10 000 lines
- Reports:
- PLU/PLU groups report
- available quantities
- commodity groups report
- departments report
- VAT groups report
- operators report
- sales report
- daily report
- Fiscal memory reports:
- by record numbers – detailed and short reports
- by dates – detailed and short reports
- Communication protocol between the ECR and PC – supported
- Built-in diagnostic test
