Electronic Cash Registers

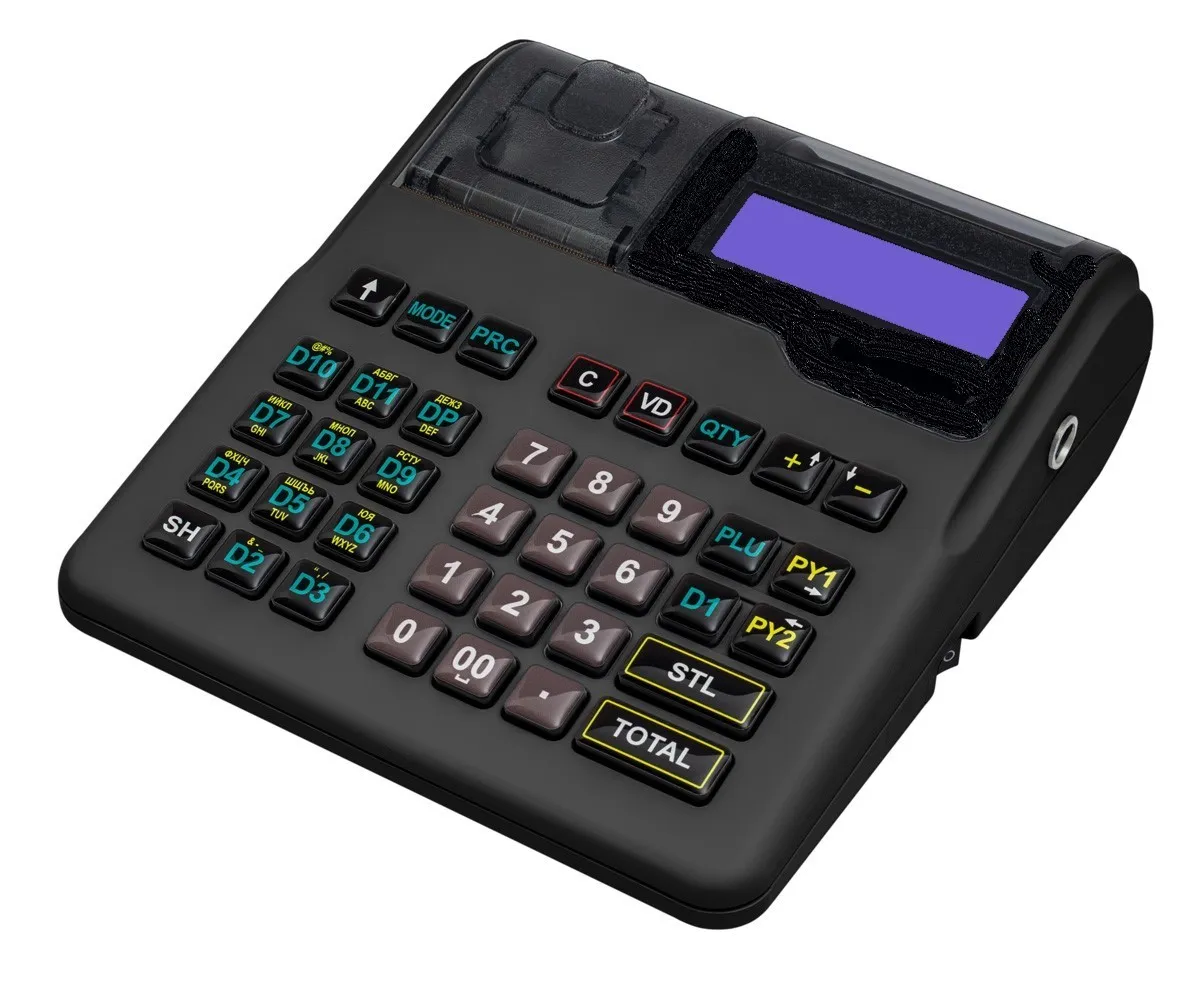

TPD 133 KL-Q
NAP type approval № 778
- Fiscal memory 1825 дневни отчета
- Programmable items (PLU) 4510
Specifications
electrical
- Supply voltage
- външен адаптер AC 100-240V, 50-60Hz; DC 9V, 2.66A
- Battery
- вградена литиево-йонна батерия: 7.4V, 1800 mАh
environment
- Operating temperature
- от -15° до +45° С
fiscal
- Fiscal memory
- 1825 дневни отчета
- Programmable items (PLU)
- 4510
- Payment types
- В БРОЙ и 4 плащания с програмируеми наименования (едното от тях – с програмируем валутен курс)
- Electronic journal (SD card)
- 4GB мин.
general
- Application
- подходящ за използване във всички обекти за търговия и услуги
hardware
- Keyboard
- 12 цифрови клавишa; 26 функционални клавишa
mechanical
- Dimensions
- Размери (mm) – 223 x 195 х 80
- Weight
- 0.9 kg
printing
- Graphic logo
- 384 х 144 пиксела
- Receipt header
- 8 реда
- Receipt footer
- 2 реда
Downloads

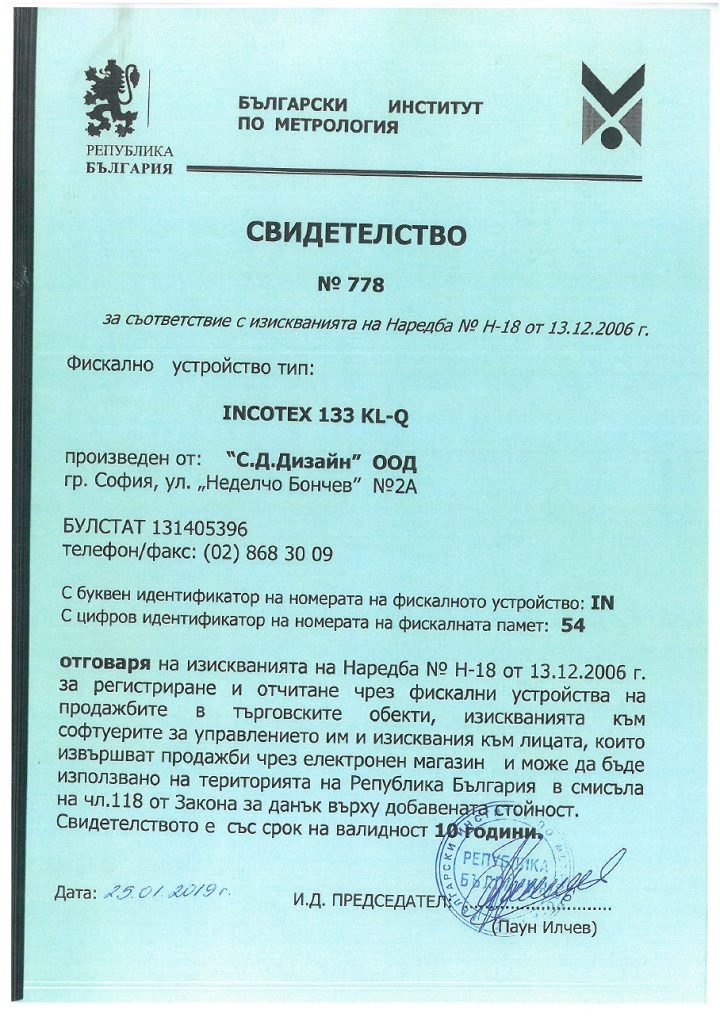

- Type approval certificate Касов апарат TPD 133 KL-Q — Свидетелство за одобрен тип JPG · 279.3 KB
- Approval supplement Касов апарат TPD 133 KL-Q — Допълнение към свидетелство PDF · 479.8 KB
- Wiring diagram Касов апарат TPD 133 KL-Q — Схема на свързване PDF · 290.6 KB
- User manual Касов апарат TPD 133 KL-Q — Ръководство за експлоатация PDF · 6.9 MB
Description
Technical Characteristics:
- Operator and customer displays – graphic alphanumeric LCD, 132 x 32
- Keyboard:
- 12 digits keys
- 26 functional keys
- Thermal printer Seiko:
- easy paper loading
- thermal paper roll width – 57mm, f up to 65mm
- GSM/GPRS modem
- Fiscal Memory
- Bluetooth (optional)
- Ethernet (optional)
- 3V Lithium battery support the Real Time Clock
- Li-Ion Battery 7.4V / 1800mAh
- built –in rechargeable
- Stand – by mode: 30 hours
- printing mode: up to 40 000 lines, fully charged
- Power Supply Adapteр
- input: AC 110~220V, 50Hz
- output: DC 9V / 2.5A
Functional Characteristics:
- PLU database
- PLU barcodes and available quantities support
- Weight barcodes support – programmable identifier, zone type and length
- Up to 500 departments
- Up to 10 operators in Registration mode and 4 passwords for the other four modes (X reports, Z reports, Programming, Service mode)
- Up to 5 VAT groups
- Up to 10 units of measure with programmable names
- Discounts and mark-ups – percentage and value
- Registration of received on account and paid out amounts
- Registration of refunds
- Electronic Journal capacity – up to 10 000 lines
- Reports:
- PLU/PLU groups report
- available quantities
- commodity groups report
- departments report
- VAT groups report
- operators report
- sales report
- daily report
- Fiscal memory reports:
- by record numbers – detailed and short reports
- by dates – detailed and short reports
- Communication protocol between the ECR and PC – supported
- Built-in diagnostic test
