MAG 3 Series

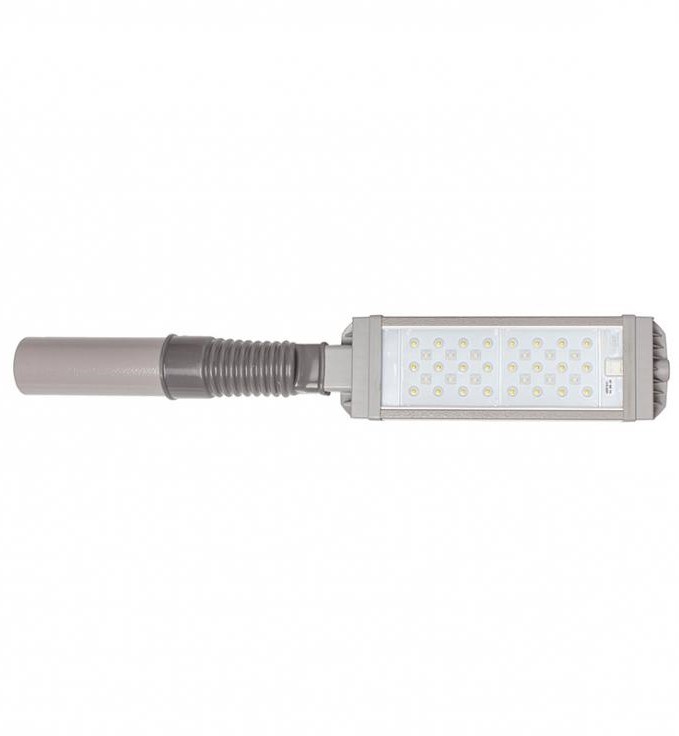

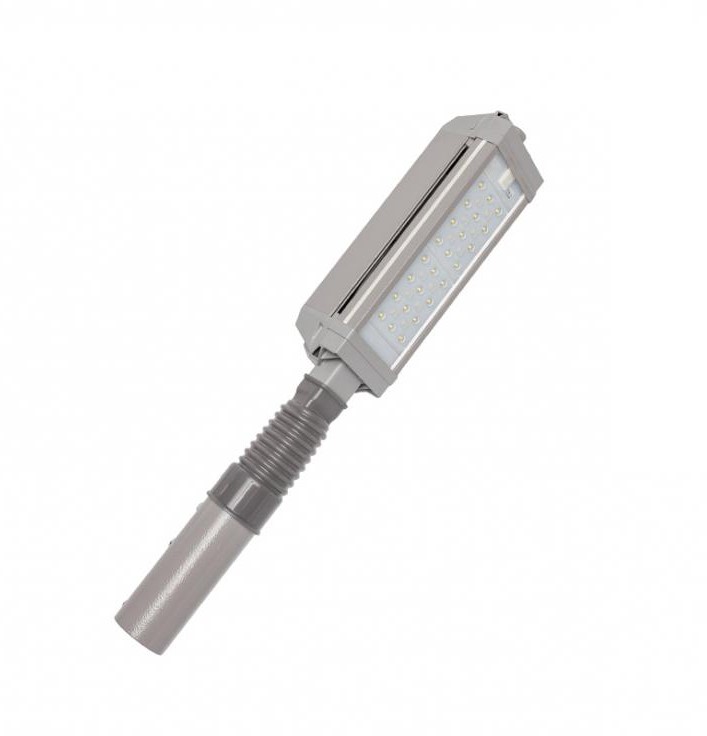

MAG.3-060-124

Road LED luminaires are an efficient substitute of luminaires with mercury and sodium lamps.
All types of our luminaires meet the requirements for roads of all categories.
What we offer:
- Weather-resistant powder-coated aluminium housing.

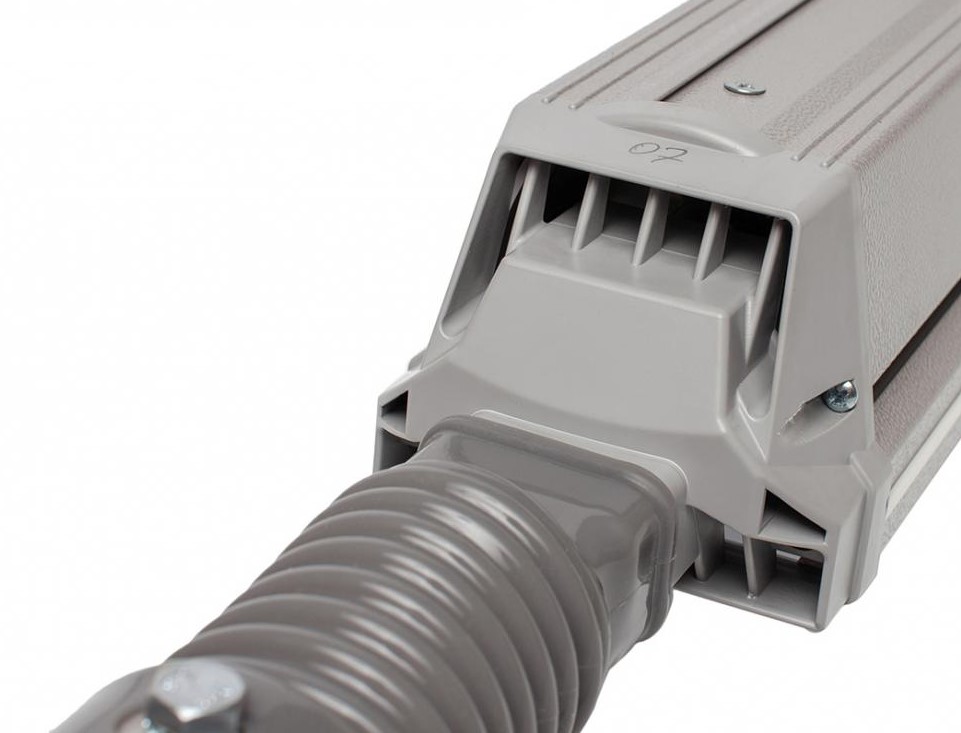

- Innovative heat sink design for efficient heat dissipation.
- High-efficacy LEDs from the leading world manufacturers Osram and Cree.
Technical specifications:
  • Input voltage – 100÷277V AC/50-60 Hz

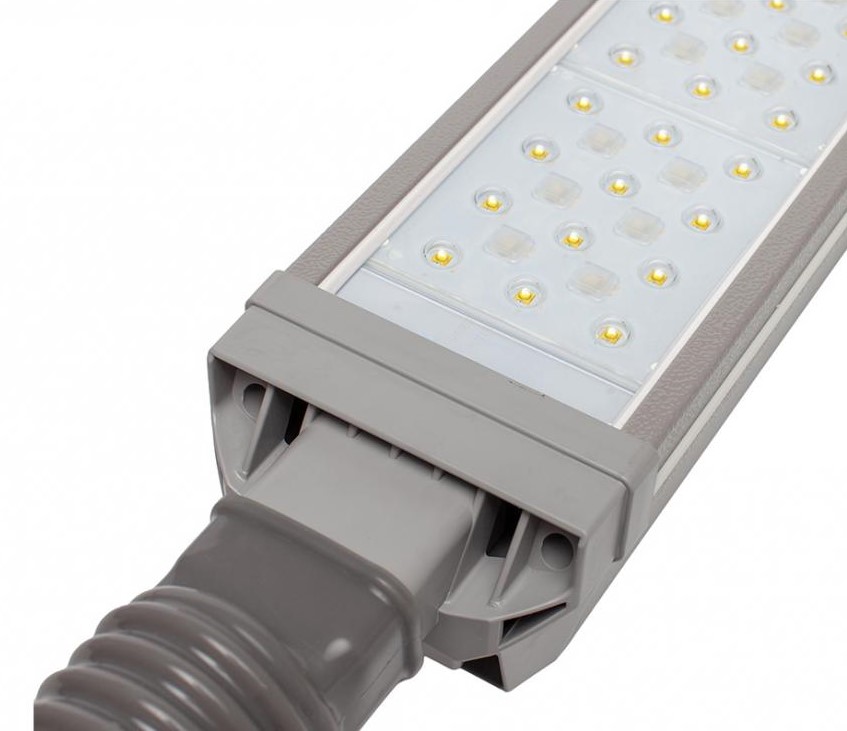

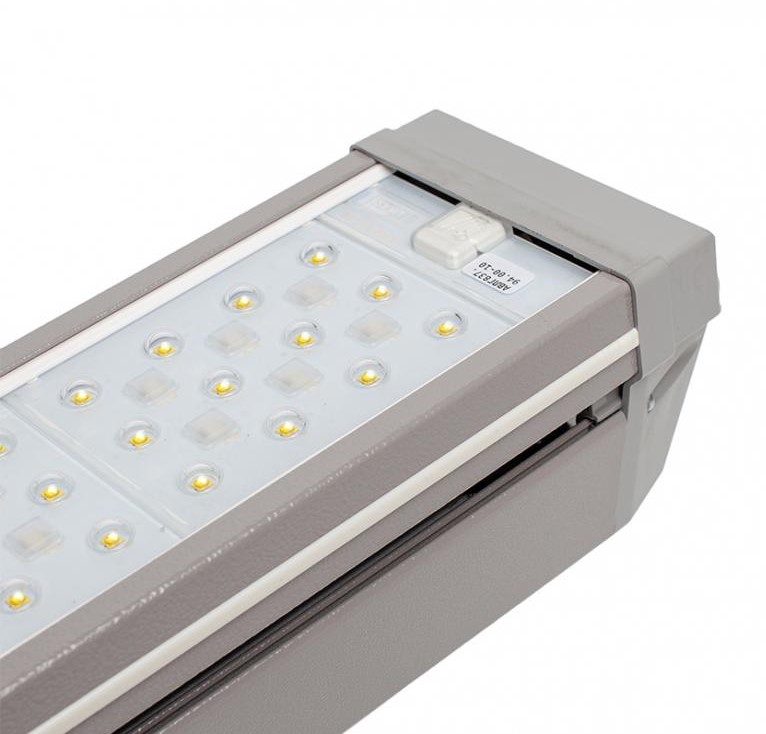

  • Light source – 24 LEDs x 2W Osram / Cree
  • Power consumption – 54W ± 5%
  • Power factor – 0.97
  • Luminous flux – 7000lm ± 10%
  • Color temperature – 3000K-6500K

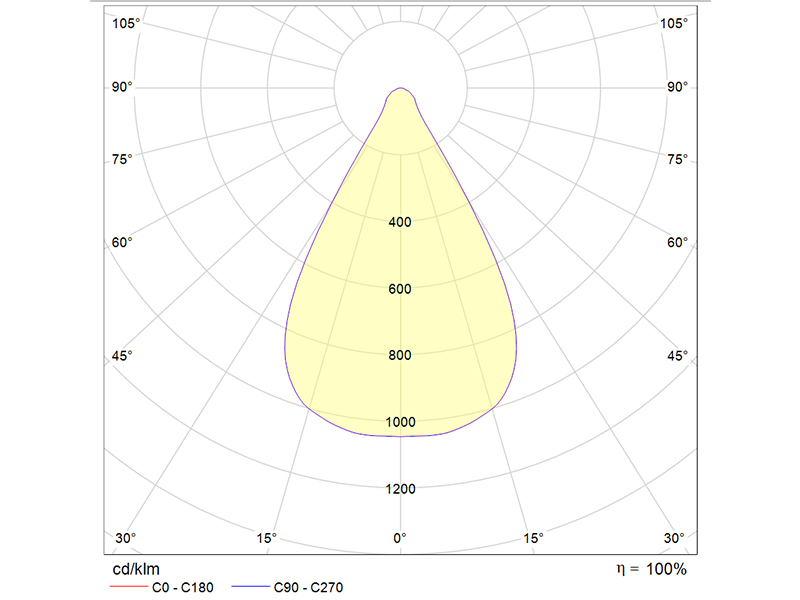

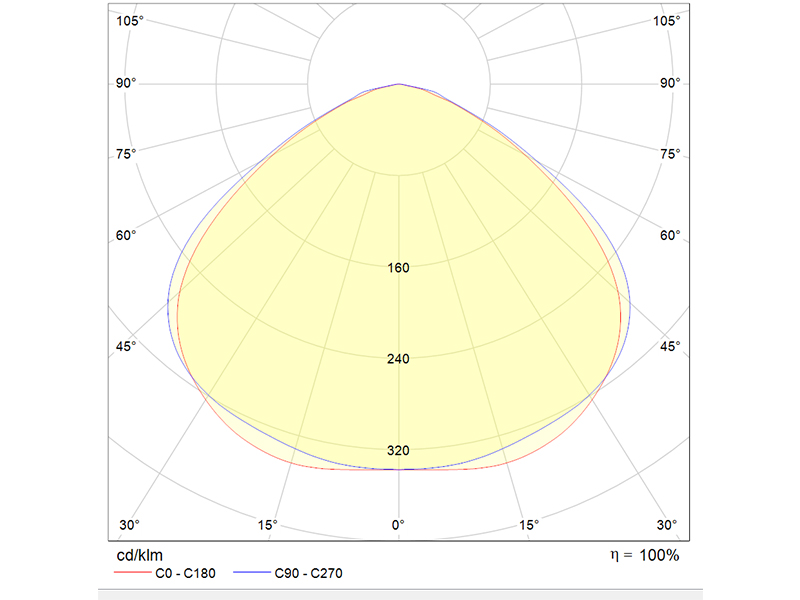

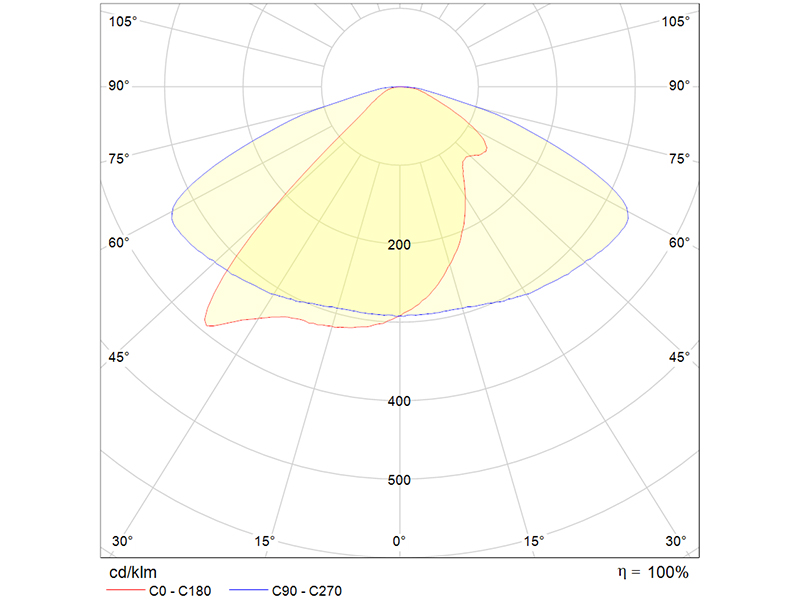

  • Optical system – asymmetrical optics 140°/60°
  • Color rendering index – Ra ≥80
  • Operating Temperature Range – ~ -45°C ÷ +50°C
  • Protection class – IP 67
  • Impact Protection Rating – IK 10
  • Lifespan (hours) – ~ 75 000

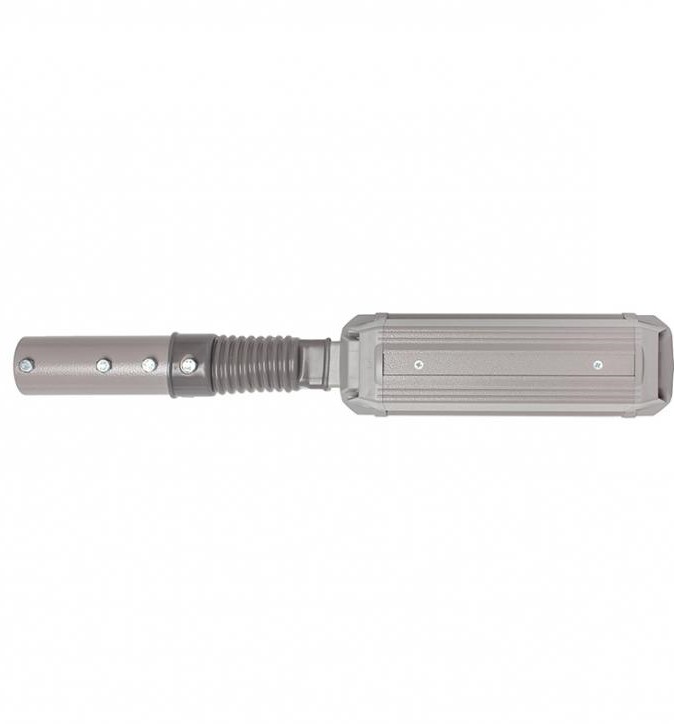

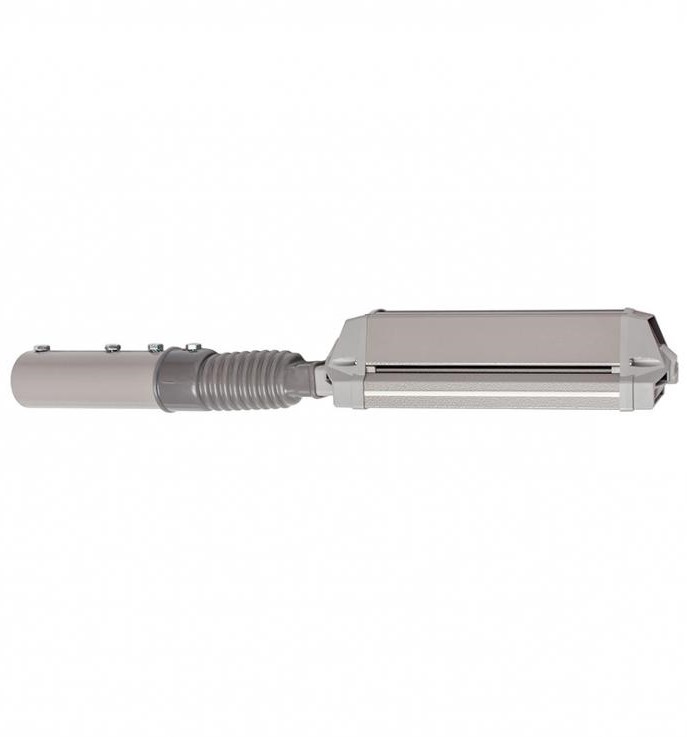

  • Housing – Aluminium
  • Weight (kg) – 3.8

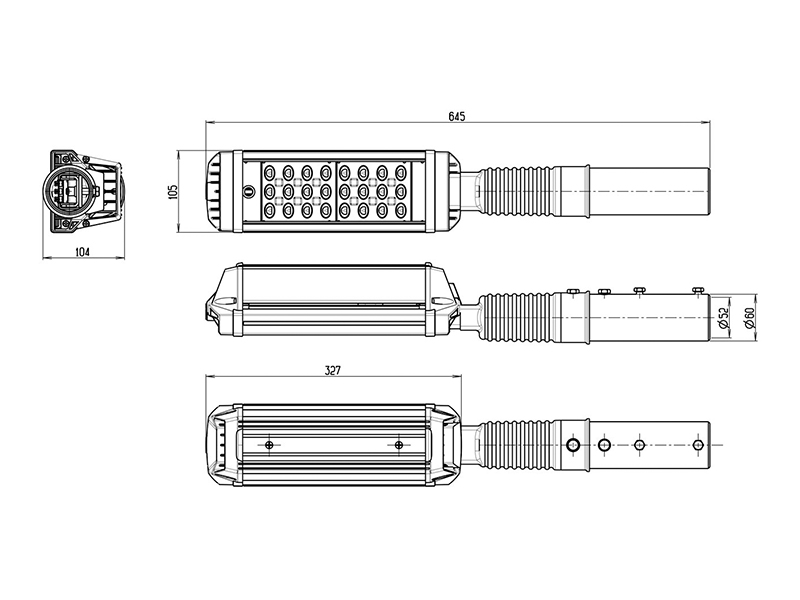

  • Dimensions L/W/H, (mm) – 645x105x104
  • Installation tube diameter – Ø 48-76mm (max)
  • Certificates
Applications
  • Roads of the A, B & C categories (controlled-access highways/motorways, single and dual carriageways)
  • Industrial estates and warehouses
  • Tunnels
  • Railway stations and tracks
