Road LED luminaires are an efficient substitute of luminaires with mercury and sodium lamps.
All types of our luminaires meet the requirements for roads of all categories.
What we offer:
- Weather-resistant powder-coated aluminium housing.

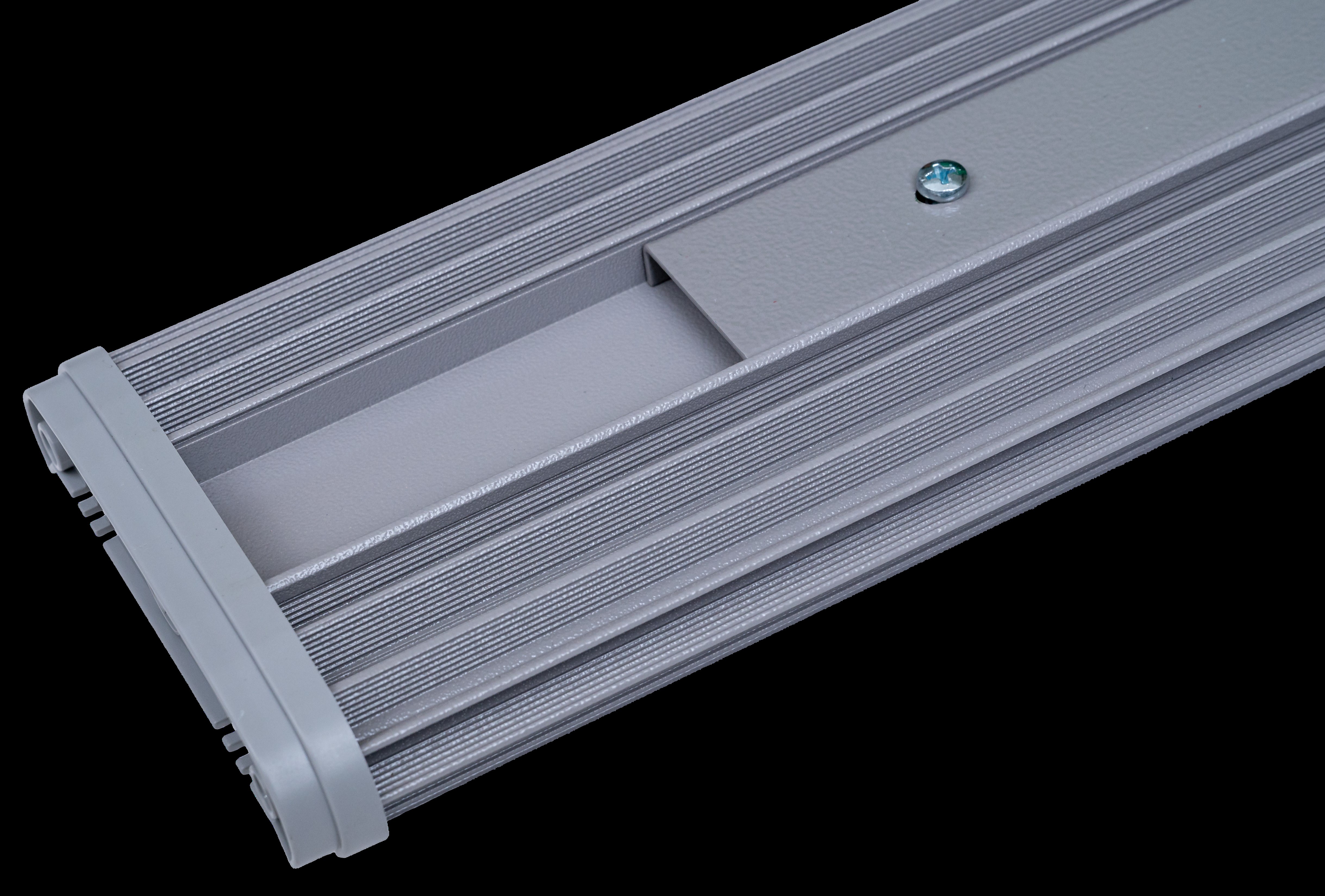

- Innovative heat sink design for efficient heat dissipation.
- High-efficacy LEDs from the leading world manufacturers Osram and Cree.

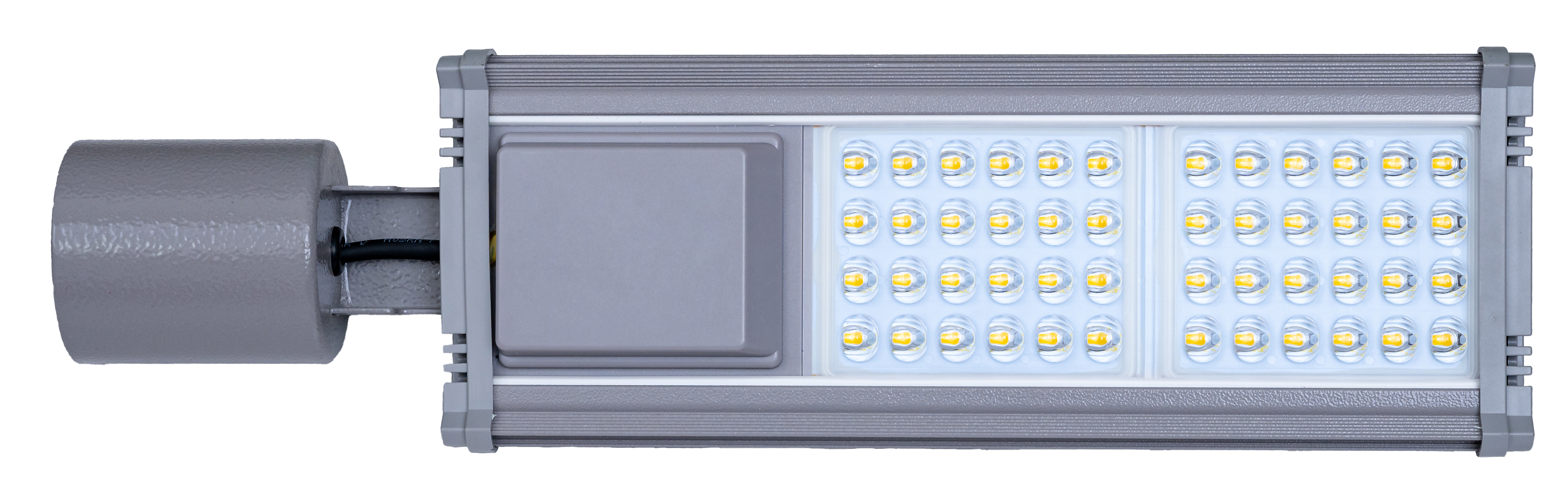

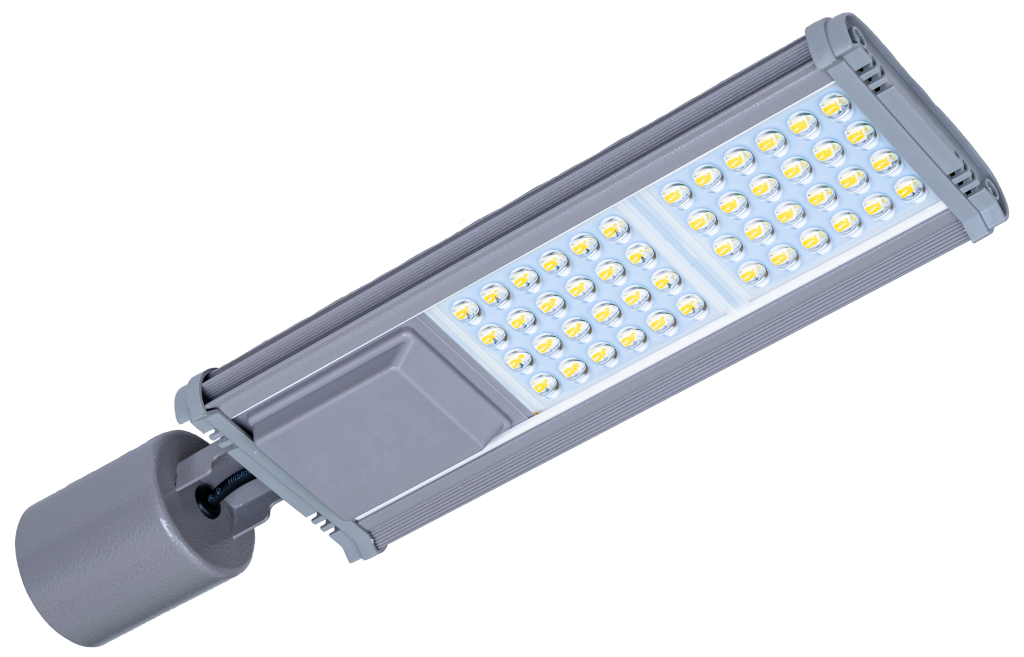

MAG 10 Series
MAG 10-090
Technical specifications:
- Input voltage – 230V AC/50 Hz
- Light source – 24 LEDs
- Power consumption – 10-30W
- Color temperature – 4000K-5500K

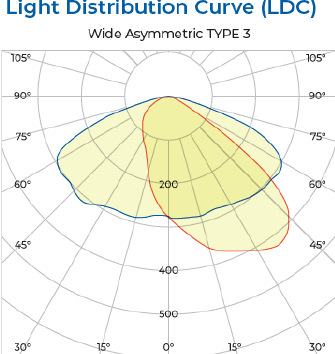

- Optical system – asymmetrical optics 150°/40°
- Color rendering index – Ra ≥75
- Operating Temperature Range – ~ -45°C ÷ +50°C
- Level of protection – IP 66
- Lifespan (hours) – ~ 50 000
- Housing – Aluminium
- Weight (kg) – 0.65
- Dimensions L/W/H, (mm) – 229x126x34
- Installation tube diameter – Ø 48-76mm (max)Certificates – CE
Applications
- Roads of the A, B & C categories (controlled-access highways/motorways, single and dual carriageways)
- Industrial estates and warehouses
- Tunnels
- Railway stations and tracks
