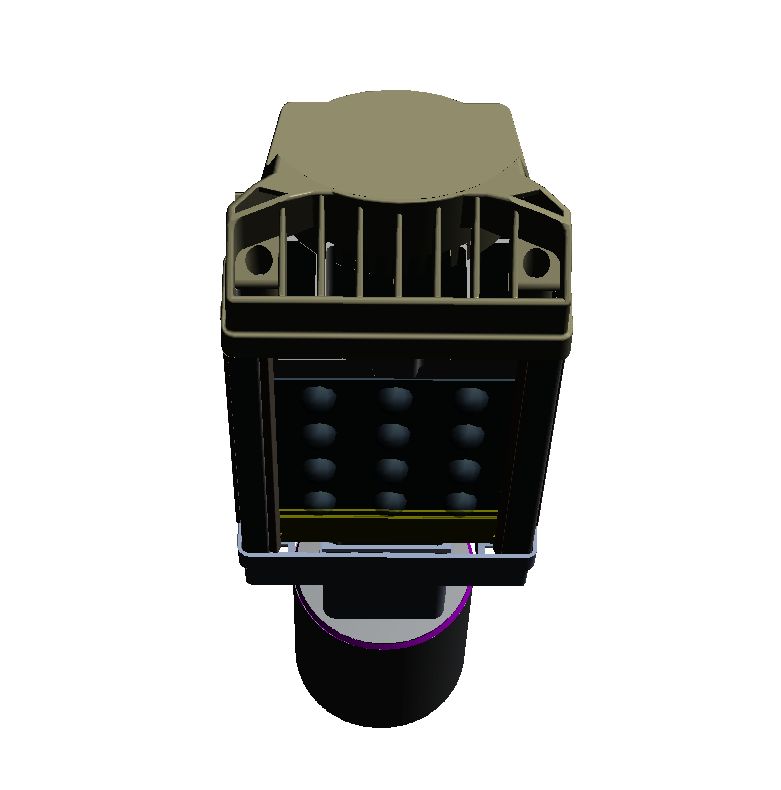

4S4.MAG 3 Series

4S4.MAG.3-018-112

LED luminaires for street lighting are ideal and far more efficient alternatives to sodium and mercury vapor fixtures. Our products meet the requirements for all road classes and feature:

A weather-resistant, powder‑coated aluminum housing, designed to endure harsh outdoor conditions
An innovative heatsink design that ensures efficient heat dissipation and extends lifespan
High-efficiency LEDs sourced from leading manufacturers Osram and Cree, delivering superior light output and reliability

Applications

Roads of categories A, B, and C (motorways, single- or dual‑carriageway roads)
Industrial zones and warehouses
Tunnels
Railway stations and tracks

Advantages

1.5–3× lower energy consumption compared to sodium/mercury vapor lamps
Customizable beam angles thanks to modular lens design
No harmful flicker, ensuring eye-safe lighting
Optional integrated surge protection (up to 10 kV)
Water- and dust‑proof LED modules, preserving luminous output
LED lifespan exceeds 100,000 hours, reducing maintenance

Message

Technical specifications:

Input voltage – 100÷277V AC/50-60 Hz
Light source – 12 LEDs x 2W Osram / Cree
Power consumption – 15W
Power factor – 0.97
Luminous flux – 2100lm ± 10%
Color temperature – 3000K-6500K
Optical system – asymmetrical optics 140°/60°
Color rendering index – Ra ≥80
Operating Temperature Range – ~ -45°C ÷ +50°C
Protection class – IP 67
Impact Protection Rating – IK 10
Lifespan (hours) – ~ 75 000
Housing – Aluminium
Weight (kg) – 2.9
Dimensions L/W/H, (mm) – 555x105x104
Installation tube diameter – Ø 48-76mm (max)
Certificates

Applications

Roads of the A, B & C categories (controlled-access highways/motorways, single and dual carriageways)
Industrial estates and warehouses
Tunnels
Railway stations and tracks
